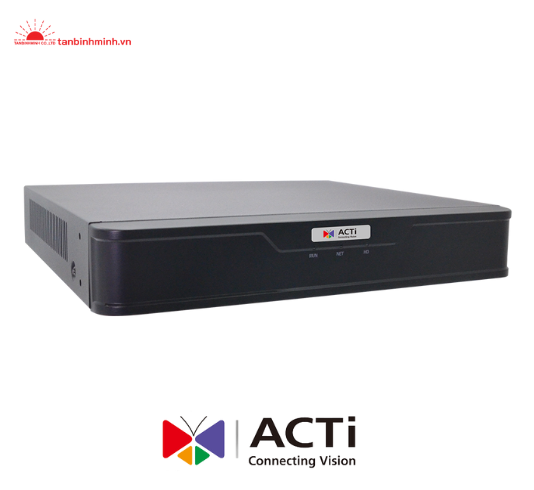

Product Type | Standalone NVR |
Maximum Resolution | 8MP |
Maximum Number of Video Devices | 16 |
Maximum Number of Clients | Local: 1, Remote: 2 |
Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
License required | No |
Free License | 16 |
Display Layout Mode | 1, 4, 6, 8, 9, 10,13,16 |
Local Live View performance | 2ch (up to 30 fps at 4K 3840 x 2160) 3ch (up to 30 fps at 5MP) 4ch (up to 30 fps at 4MP) 5ch (up to 30 fps at 3MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) |
Digital Zoom | Yes |
PTZ Control | PTZ Control, Speed Control |
Compression | H.265, H.264 |
Audio Type | 2-way, Line-in, Line-out |
Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Scheduled Recording | Yes |
Event Recording | Yes |
Manual Recording | Yes |
Maximum Recording Throughput | 64 Mbps |
Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop, frame-by-frame |
Synchronized Playback | 16 channels |
Video Export | MP4 |
Permission control | 128 Remote users, Customizable permissions for user groups |
Client PC Operating System | Windows 7, Windows 8, Windows 10 |
Server Operating System | Embedded Linux |
USB | 1-Port USB 2.0, 1-Port USB 3.0 |
Web Browser | IE 10 or newer |
Storage Bay | SATA, Max. 1 Disk(s) |
HDD Size | 3.5" |
Maximum Recording Capacity | 6TB x1 |
RAID Level | No |
Audio Interface | 1/1, RCA Jack |
Local Access | USB keyboard & mouse |
Local Display Interface | HDMI x 1, VGA x 1 |
Power Source | DC 12V |
Power Consumption | 8 W (DC, without HDD) |
Dimensions | (W x H x D): 260mm x 46mm x 240mm (10.24" x 1.81" x 9.45") |
Bundled Accessories | Power Adapter, USB Mouse |
Fan | No |
Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
Operating Humidity | 10% - 90% RH |
Remote Access | Web Client |
Color | Black |
Material | Iron |
Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
