CHI TIẾT SẢN PHẨM

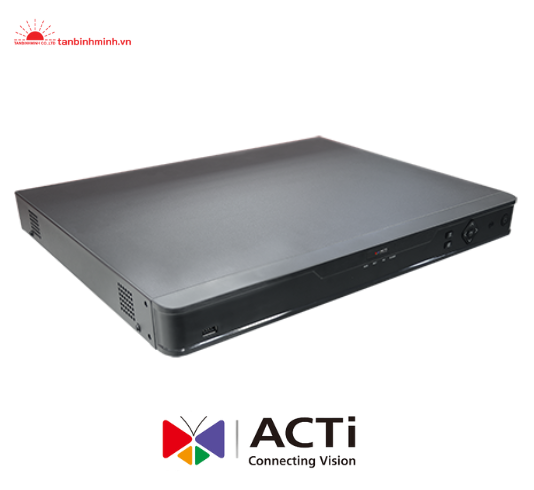

Đầu ghi hình 16 kênh PoE ZNR-220P

NVR ACTi 16 kênh

  • MS : ZNR-220P
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution 12MP
Maximum Number of Video Devices 16
Maximum Number of Clients Local: 1, Remote: 2

Hardware


CPU Hi3536

License


License required No
Free License 16

Live View


Display Layout Mode 1, 4, 6, 8, 9, 16
Local Live View performance 4ch (up to 20 fps at 12MP)
4ch (up to 30 fps at 4K 3840 x 2160)
8ch (up to 30 fps at 4MP)
16ch (up to 30 fps at 2MP 1920 x 1080)
Digital Zoom Yes
Event Status Display event status upon alarm or upon connection loss or recovery between server and client
Instant Playback Instant Playback in live view window

PTZ


PTZ Control PTZ Control, Speed Control

Video


Compression H.265, H.264
Maximum Frame Rate vs. Resolution 20 fps at 4072 x 3076
30 fps at 3840 x 2160
20 fps at 2688 x 1520
25 fps at 1920 x 1080
25 fps at 1280 x 720

Audio


Audio Type 2-way, Line-in, Line-out

Network


Ethernet Port Total ports: 17 port(s)
Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector
PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Maximum Recording Throughput 160 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop
Synchronized Playback 16 channels
Video Export MP4

Event


Event Trigger [Video Device]: Video motion detection, External device through digital input, Sound detection, Intelligent event detection (Intrusion Detection, Tampering Detection)

System


Permission control 128 Remote users, Customizable permissions for user groups
Client PC Operating System Windows 7
Server Operating System Embedded Linux
USB 1-Port USB 2.0, 1-Port USB 3.0

Integration


ONVIF Compliant Yes
Web Browser IE 10 or newer

Storage


Storage Bay SATA, Max. 2 Disk(s)
Maximum Recording Capacity 8TB x2
RAID Level No

Interface


Digital Input/Output 4/1
Local Access HDMI/VGA monitor, USB Mouse

General


PoE Output Maximum 30 Watts per port
PoE Power Budget Maximum 240 W
Power Source AC 100-240V
Power Consumption 20 W (AC)
Weight 2480g (5.47lb)
Dimensions (W x H x D): 380mm x 315mm x 46mm (15" x 12.4" x 1.8")
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity 10% - 90% RH
Remote Access Web Client
Approvals CE, FCC
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
