CHI TIẾT SẢN PHẨM

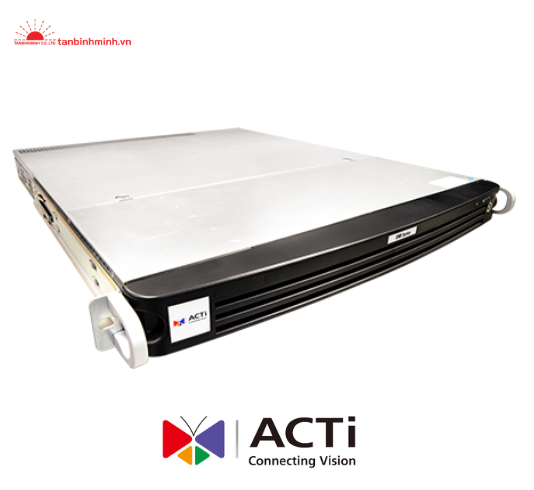

Đầu ghi hình 16 kênh ERN-190
NVR ACTi 16 kênh
- MS : ERN-190
- Bảo hành :
- Kho hàng :
- Hãng sản xuất : ACTi
- Xuất xứ : TAIWAN
- Seri sản phẩm :
Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
| Product Type | Standalone NVR |
| Maximum Resolution | Local: up to 3MP; Remote: up to10MP |
| Maximum Number of Cameras | 16 |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
License
| License required | No |
| Free License | 16 |
Live View
| Display Layout Mode | Local:1,2,4,9,12,16,1+5,1+7,1+12,2+4,2+8, Remote:1,2,4,9,12,16,1+5,1+7,1+12,2+4,2+8 |
| Fisheye Dewarping | Local: No, Remote: Yes |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window (Remote client) |
PTZ
| PTZ Control | PTZ Control, Speed Control, 32 preset points |
| Joystick | USB based joystick supported |
Video
| Compression | H.264 |
Audio
| Audio Compression | PCM, G.711 |
Network
| Network Protocol & Service | IPv4/v6, TCP, IP, UDP, HTTP, HTTPS, DHCP (Server/Client), PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, SMTP, UPnP, To be available through future firmware upgrade |
| Ethernet Port | Total ports: 2 port(s) (LAN 1) Non-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector (LAN 2) Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
| Security | HTTPS encryption, Password protected user level |
Recording
| Recording Resolution | 12MP, 10MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 1080p (1920x1080), 720p, CIF, VGA |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Recording Capability | ≥25 fps at 1920x1080 (per channel) |
| Maximum Recording Throughput | 48 Mbps |
Search & Playback
| Playback Control | Continuous forward and backward playback with speeds 0.5x/1x/2x/4x/8x/16x/32x, pause, stop |
| Synchronized Playback | 16 channels |
| Video Export | AVI, RAW |
Event
| Event Trigger | Video motion detection, External device through digital input, Network loss and recovery |
| Event Response | Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour |
System
| Permission control | Unlimited number of users, Customizable permissions for user groups |
| Client PC Operating System | Windows 7 SP1, Windows 8.1 |
| Server Operating System | Embedded Linux |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iPhone, iPad, Android device |
| USB | 2-Port USB 2.0 |
| Language | Multi-Language |
| System Status Monitor | Real time status reports on remote browser |
Integration
| Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
Storage
| Storage Bay | SATA, Max. 4 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 14TB x4 |
Interface
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, |
General
| Power Source | AC 100-240V |
| Power Consumption | 64 W (AC) |
| Weight | 9300g (20.503lb) |
| Dimensions | (W x H x D): 438.4mm x 43.6mm x 511.66mm (17.3" x 1.7" x 19.9") Rack Space: 1U |
| Mount Type | Rack mounts |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH |
| Remote Access | Workstation, Web Client, Mobile Client |
| Approvals | CE, FCC, UL (for built-in power adapter) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Photo Indication
- Disk Bays Cover
- System Status LED
- HDD Activity LED
- Power Status LED
- Storage Disk Bays
- USB 2.0 Ports
- Reset Button
- Power Button
- Latch Lever
- Key Lock
- Power Connector
- HDMI Output
- LAN 1 Port
- LAN 2 Port
Dimension Diagram
Unit: mm [inch]
