CHI TIẾT SẢN PHẨM

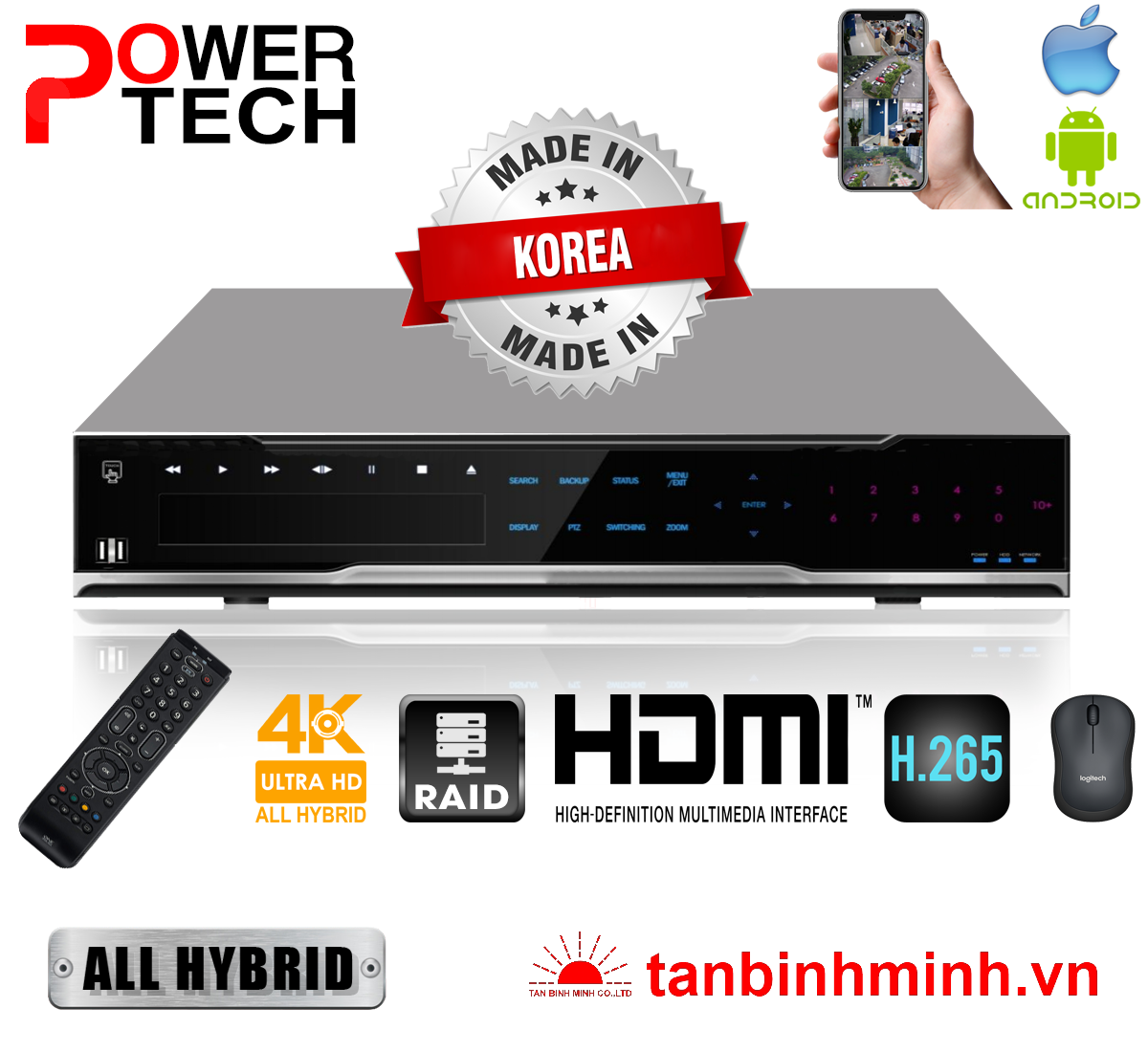

Đầu ghi hình 16 kênh 4K XPM16R265 RAID

DVR 16 kênh

  • MS : XPM16R265 RAID
  • Bảo hành : 12 Tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : POWERTECH
  • Xuất xứ : Korea
  • Seri sản phẩm : Updating...

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
Model x-Primero 265 RAID Series
x-Primero 16R 265 RAID x
Video Camera input 16 BNC x
Individual HD/Analog selectable Analog, TVI, AHD, CVI, HD-SDI, EX-SDI, IP
Available source Upto 4K IPC
TVI/AHD/CVI 720p25,30/1080p25,30/3MP@18~30/4MP@12~30/8MP@15
HD-SDI/EX-SDI 720p25,30/1080p25,30/4MP@25,30/8MP@15
/Composite/960H/Mixed
IP Camera Spec ONVIF 2.3, RTSP, H.264, dual stream
use gigabit ethernet hub
Num 8 x
Restriction Cannot setup Private ZONE
Cannot support Timestamp
Output 2 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio Audio input 16 RCA
Output 4 RCA
Sensor In 16 (NC, NO selectable)
Alarm out 2 Relay, 14 TTL
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080, UHD
Split screen 1,4,6,8,9,13,16 x
Main Recording CODEC H.265
Resolution (Pixel) 8MP : 8MP, 720p
4MP : 4MP, 720p
3MP : 3MP, 720p
1080p : 1080p, 720p
720p : 720p, 960x540
960H, Composite : 960H, D1
Picture quality 4 steps (Super, High, Medium, Low)
Speed 120fps @ 8MP
240fps @ 4MP
480fps @ 1080p
x
Dual Recording CODEC H.265
Condition 640x360 x
Playback Display 1,4,6,8,9,13,16 x
Search mode
Speed 480fps x
Fast/Slow speed Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause
Network
(Individual setting
of resolution,
frame rates and
picture quality)
Network Interface Gigabit Ethernet
High Resolution (Pixel)
Video IN : Possible Recording
8MP : 1080p, 720p
4MP : 1080p, 720p
3MP : 1080p, 720p
1080p : 1080p, 720p
720p : 720p, 960x540
960H, Composite : 960H, D1
X
Low Resolution (Pixel)
Video IN : Possible Recording
8MP : 480x256
4MP : 480x256
3MP : 480x256
1080p : 480x256
720p : 480x256
960H, Composite : CIF
Speed 140fps @ 1080p x
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 (PC Client system& IE)/MAC
Web Browser Internet Explorer
Smart phone App Android, iPhone for live and search
Backup Interface USB 2.0 X 3
Backup device External HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD

8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 10TB or more)

RAID 0/1/3/5/10

Function

· Full GUI with alpha blending

· Individual setting of resolution, frame rates and picture quality
· Instant Replay
· Digital Zoom
· Mouse Control
· Weekly scheduler with holiday by 10 minutes setting
· Covert, Disable and Private function of cameras
· Motion Detection with 576 area setting
· Relay alarm output
· PTZ control by RS-485
· Daylight Saving Time and Network Time Setting
· Multi User Authority
· Deinterlacer upon live and playback
· Multi languages with full graphic
· Individual Network port setting
· Auto Deletion
· Import and Export the configuration
· Interactive setup via network
· POS Interface
· Mirroring
Others Power Consumption 150W
Operating Temperature 5~40°C(41~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 430(W)×420(D)×88(H) mm
