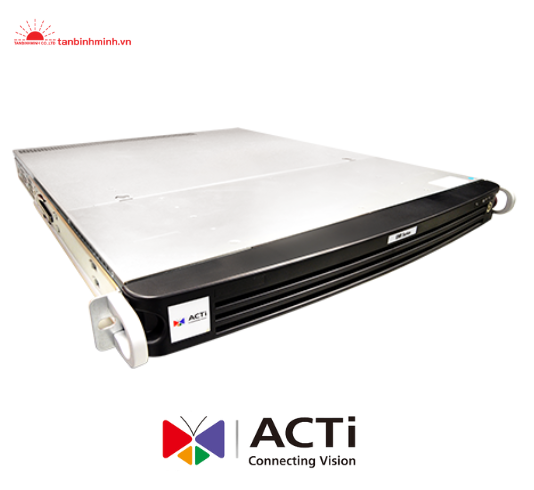

Đầu ghi hình 32 kênh ERN-421

NVR ACTi 32 kênh

  • MS : ERN-421
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution Support all ACTi cameras in all resolutions
Maximum Number of Video Devices 32
Maximum Number of POS devices 32
Maximum Number of Access Control and Network I/O devices 32
Maximum Number of Clients Local: 1, Remote: 2
Supported Screen Resolution HDMI: 1080p, 4K2K

Hardware


CPU Hi3536
RAM 4GB

License


License required No
Free License 32

Live View


Display Layout Mode Custom dynamic layouts by grid merging, local up to 16 video channels, remote up to 32 video channels
Fisheye Dewarping Local: Yes*, Remote: Yes
Local Live View performance Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
Digital Zoom Yes (available for remote web client)
Event Status Display event status upon alarm or upon connection loss or recovery between server and client
Instant Playback Instant Playback in live view window

Map


e-Map Yes*
Google Map Yes*

PTZ


PTZ Control PTZ Control, Speed Control, 32 preset points

Video


Compression H.265, H.264, MJPEG
Text Overlay Yes

Audio


Audio Type 2-way, Line-in, Line-out

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP (Server/Client), HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, SNMP
Ethernet Port Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Event Speed-up Recording Yes
Dual Stream Management Yes
Maximum Recording Throughput 300 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 0.125x/0.25x/0.5x/1x/2x/4x/8x/16x, pause, stop
Synchronized Playback 16 channels
Recording Search Search video recordings by time, events, channels and bookmarks*
Video Export RAW, AVI

Event


Event Trigger [NVR]: Disk full, Disk not found, System booted successfully, Expiration of user accounts, Expiration of specific event schedule, Event action failed, S.M.A.R.T test failed.

[Video Device]: Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras).

[Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status
Event Response Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Command other devices, Push notification

System


Permission control Unlimited number of users, Active Directory*, Customizable permissions for user groups*, Account lockout*, Automatic logout after idle*
Client PC Operating System Windows 10, Windows 8.1, Windows 7 SP1
Server Operating System Embedded Linux
Mobile Client Program Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iOS, Android device
USB 2-Port USB 2.0, 1-Port USB 3.0
Language Multi-Language

Integration


Unified Solution Fully compatible with ACTi Cameras, Video Encoders, Central Management System*, TV Wall Server*, Intelligent video surveillance software
ONVIF Compliant Yes, Profile S
Web Browser IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)
Auto Firmware Upgrade Yes
Third-party Integration Point of Sale (POS), Parking Management Station (PMS), Access Control, Network I/O

Storage


Storage Bay SATA, Max. 4 Disk(s) (without storage disks)
HDD Size 3.5"
Maximum Recording Capacity 14TB x4
Supported Storage Video Recording: SATA disk, iSCSI Export*: USB, iSCSI, Samba, NFS

Interface


Digital Input/Output 2/2
External Storage Interface iSCSI
Local Access USB keyboard & mouse
Local Display Interface HDMI x 1,

General


Power Source AC 100-240V
Weight 7011g (15.457lb)
Dimensions Rack Space: 1U
(W x H x D): 438.4mm x 43.6mm x 505.59mm (17.2" x 1.69" x 19.8")
Bundled Accessories Power Adapter
Fan Yes
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Remote Access Web Client, Mobile Client
Approvals CE, FCC, UL (for built-in power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade

Photo Indication

  1. HDD Bay
  2. USB 2.0 Ports
  3. LED Indicators
  4. Reset Button
  5. Power Button
  6. Power Input Connector
  7. LAN Ports
  8. Audio Output Jack
  9. HDMI Port
  10. WAN Port
  11. Digital Input/Output
  12. Audio Input Jack
  13. USB 3.0 Port

Dimension Diagram

Unit: mm [inch]
