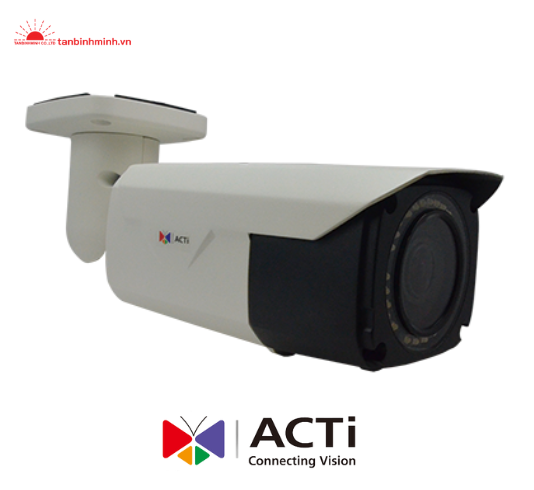

Camera IP thân dài A46

Camera IP thân dài

  • MS : A46
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Bullet
Maximum Resolution 5MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 2592(H) X 1944(V) (5.04 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.2 lux at F1.4 (AGC on); B/W: 0.02 lux at F1.4 (AGC on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 30m
Electronic Shutter 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines) 1600 TVL

Lens


Focal Length Zoom, f2.7-13.5mm
Aperture F1.4-F3.3
Zoom Ratio 5x optical
Zoom Application Camera Installation
Iris Adaptive iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 96.8° - 30.7°
Vertical Viewing Angle 70.4° - 23.1°

Video


Compression H.265, H.264 (Main profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2560 x 1920
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (125 dB)
Image Enhancement White Balance, Brightness, Backlight compensation (BLC), Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics Tampering Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression 8 kHz, Mono, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login

Video Analytics


Analysis Source Type Video

Event


Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 1/1 (Cable with Terminal block)

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 12.95 W (PoE)
Weight 1230.5g (2.71lb)
Dimensions (W x H x D): 94mm x 86mm x 291.1mm (3.70" x 3.39" x 11.46")
Environmental Casing Weatherproof (IP66), Vandal proof metal casing (IK10)
Mount Type Integrated Bracket, Pole Mount
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Approvals CE, FCC, IP66, IK10 (metal casing)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Audio Output
  2. DC 12V Power Input
  3. Factory Reset
  4. Audio Input
  5. Ethernet Port
  6. Digital Input / Output

Dimension Diagram

Unit: mm [inch]
