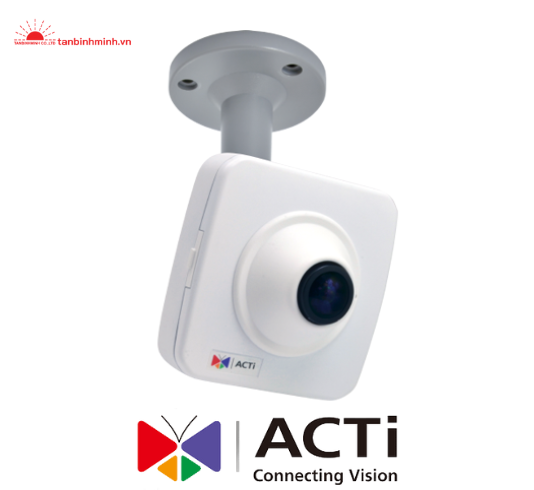

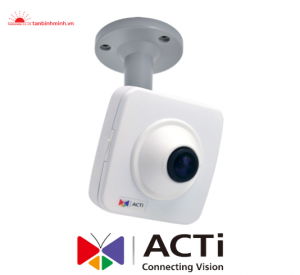

Camera IP ACTi E15

Camera IP cube

  • MS : E15
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Fisheye Cube
Maximum Resolution 5MP
Application Environment Indoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2 "
Effective Pixels 2592(H) X 1944(V) (5.04 MP)
Day / Night No
Low Light Sensitivity Standard
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400 K)
Mechanical IR Cut Filter No
IR LED No
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 1350 TVL
S/N Ratio 52 dB

Lens


Focal Length Fixed focal, f1.19mm
Aperture F2.0
Iris Fixed iris
Focus Fixed focus
Lens Mount Board mount
Horizontal Viewing Angle 189.7° (overview area)
115.7° (high detail area)
Vertical Viewing Angle 189.67°

Video


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 15 fps at 2592 x 1944
15 fps at 2048 x 1536
15 fps at 1440 x 1080
15 fps at 1280 x 960
15 fps at 800 x 600
15 fps at 640 x 480
15 fps at 320 x 240
View Mode Fisheye View
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR (74 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Audio


Audio Type 2-way, Built-in Microphone, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions), Sound detection,
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T* (To be available through future firmware upgrade), Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Audio Interface Built-in microphone, 3.5mm Phone Jack
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)

General


Power Source PoE Class 2 (IEEE802.3af)
Power Consumption 3.55 W (PoE)
Weight 245g (0.543lb)
Dimensions (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8")
Environmental Casing No
Bundled Accessories Bracket
Mount Type Bracket
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, UL (for optional PoE injector)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Built-in Microphone
  2. Audio Output
  3. Reset Button
  4. Ethernet Port
  5. Memory Card Slot

Dimension Diagram

Unit: mm [inch]
