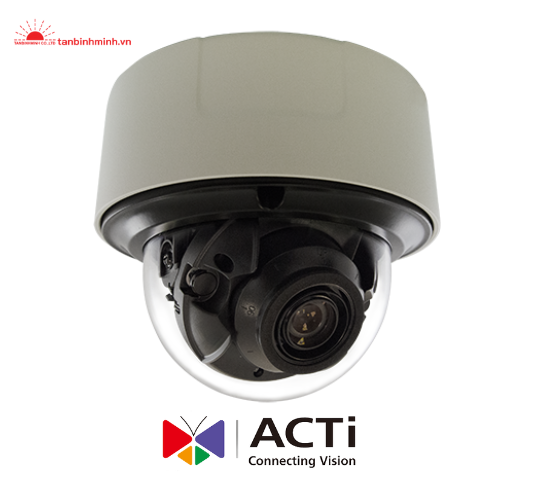

Camera IP Zoom VMGB-602

Camera IP Zoom

  • MS : VMGB-602
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Metadata Camera
Maximum Resolution 2MP
Product Application Face, People and Car Detection
Application Environment Indoor
Description Dome Camera Built-in Deep learning-based Face Detection, People and Car Detection with f8-32mm lens
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.8 "
Day / Night Yes
Low Light Sensitivity Superior
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 30m

Lens


Focal Length Zoom, f8.0-32mm
Aperture F1.6
Zoom Ratio 4x optical
Horizontal Viewing Angle 42.5° - 13.4°
Vertical Viewing Angle 23.4° - 7.7°

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 60 fps at 1920 x 1080
60 fps at 1280 x 960
60 fps at 1280 x 720
30 fps at 704 x 480
30 fps at 640 x 480
Multi-Streaming Multiple streams
Bit Rate 32Kbps - 16Mbps (per stream)
Wide Dynamic Range Extreme WDR (140 dB)
Image Enhancement Defogging, Digital Image Stabilizer (DIS, EIS)
Digital Noise Reduction 3D DNR
Built-in Analytics Missing Object Detection, Unattended Object Detection, People Line Crossing Detection, People Enter Area Detection, Face Detection, Car Detection
Image Orientation Rotation

Audio


Audio Type 2-way, Line-in, Line-out

Video Analytics


Analysis Source Type Video
Metadata Accuracy Excellent

Integration


ONVIF Compliant Yes, Profile S, Profile G

Interface


Serial Port 1 x RS-485
Audio Interface 1/1, 3.5mm Phone Jack
Local Storage MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output 1/1

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Weight 948g (2.09lb)
Dimensions (Ø x H): 140.5mm x 122.6mm (5.5" x 4.8")
Environmental Casing Vandal proof (IK10)
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Dimension Diagram

Unit: mm [inch]
