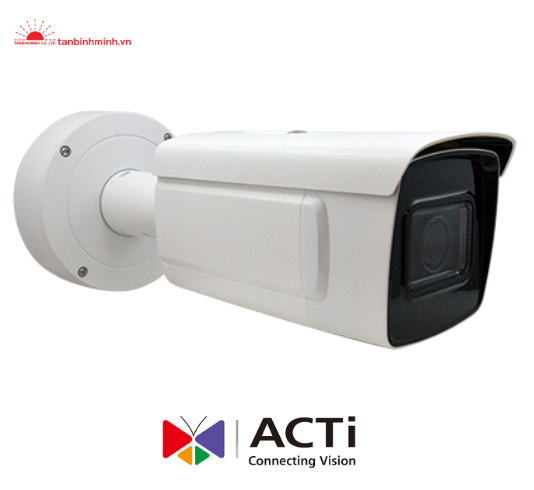

Camera IP Zoom VMGB-405

Camera IP Zoom

  • MS : VMGB-405
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Metadata Camera
Maximum Resolution 2MP
Product Application Automatic License Plate Recognition
Application Environment Outdoor
Description Camera Built-in Deep learning-based ALPR with working for vehicle speed <60km/h. (Taiwan Only)
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.8 "
Day / Night Yes
Low Light Sensitivity Superior
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED (850 nm)
IR Working Distance 100m
Electronic Shutter 1-1/100000 second (auto mode)

Lens


Focal Length Zoom, f8.0-32mm
Aperture F1.6
Zoom Ratio 4x optical
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 42.5° - 13.4°
Vertical Viewing Angle 23.4° - 7.7°
Viewing Angle Adjustment Pan: 0°-355°, Tilt: 0°-90°, Rotation: 0°-360°

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 60 fps at 1920 x 1080
60 fps at 1280 x 960
60 fps at 1280 x 720
30 fps at 704 x 480
30 fps at 640 x 480
Multi-Streaming Simultaneous 5 streams
Bit Rate 32Kbps - 16Mbps (per stream)
Wide Dynamic Range Extreme WDR (140 dB)
Image Enhancement Defogging, Digital Image Stabilizer (DIS, EIS)
Digital Noise Reduction 3D DNR
Built-in Analytics Automatic License Plate Recognition, Object Line Crossing Detection, Object Enter Area Detection
Image Orientation Rotation

Video Analytics


Analysis Source Type Video
Metadata Accuracy Good

Integration


ONVIF Compliant Yes, Profile S, Profile G
Supported Countries Taiwan

Interface


Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (bundled 64GB SD card; support for up to 256GB)
Digital Input/Output 2/2

General


Power Source DC 12V, High PoE (IEEE802.3at)
Power Consumption 14 W (DC)
Weight 2500g (5.51lb)
Dimensions (Ø x L): 140mm x 351mm (5.5" x 13.8")
Environmental Casing Weatherproof (IP67), Vandal proof metal casing (IK10)
Heater No
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Dimension Diagram

Unit: mm [inch]
