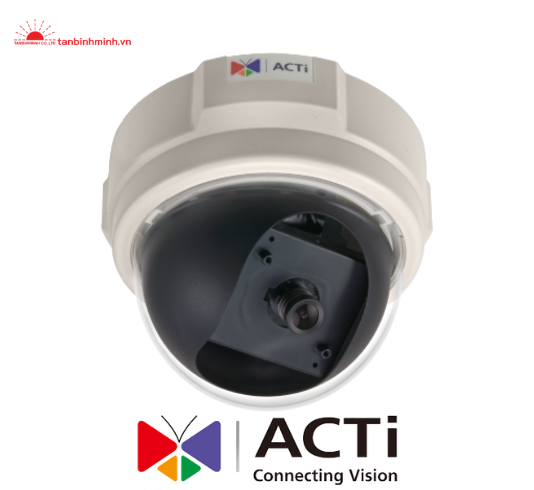

Camera IP ACTi E51

Camera IP Dome

  • MS : E51
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Dome
Maximum Resolution 1MP
Application Environment Indoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/4 "
Effective Pixels 1280(H) X 800(V) (1.02 MP)
Day / Night No
Low Light Sensitivity Standard
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400 K)
Mechanical IR Cut Filter No
IR LED No
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 700 TVL
S/N Ratio 52 dB

Lens


Focal Length Fixed focal, f2.8mm
Aperture F2.0
Iris Fixed iris
Focus Fixed focus
Lens Mount Board mount
Horizontal Viewing Angle 77.5°
Vertical Viewing Angle 43°
Viewing Angle Adjustment Pan: 0°-330°, Tilt: 0°-180°

Video


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR (74 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions),
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Upload video or snapshot to FTP server, Upload video to NVR server

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile T* (To be available through future firmware upgrade), Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface



General


Power Source PoE Class 2 (IEEE802.3af)
Power Consumption 3.79 W (PoE)
Weight 292g (0.64lb)
Dimensions (Ø x H): 128mm x 99mm (5.12" x 3.90")
Environmental Casing No
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, UL Listed (UL 60950-1)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Power LED
  2. Ethernet Port
  3. Reset Button

Dimension Diagram

Unit: mm [inch]
